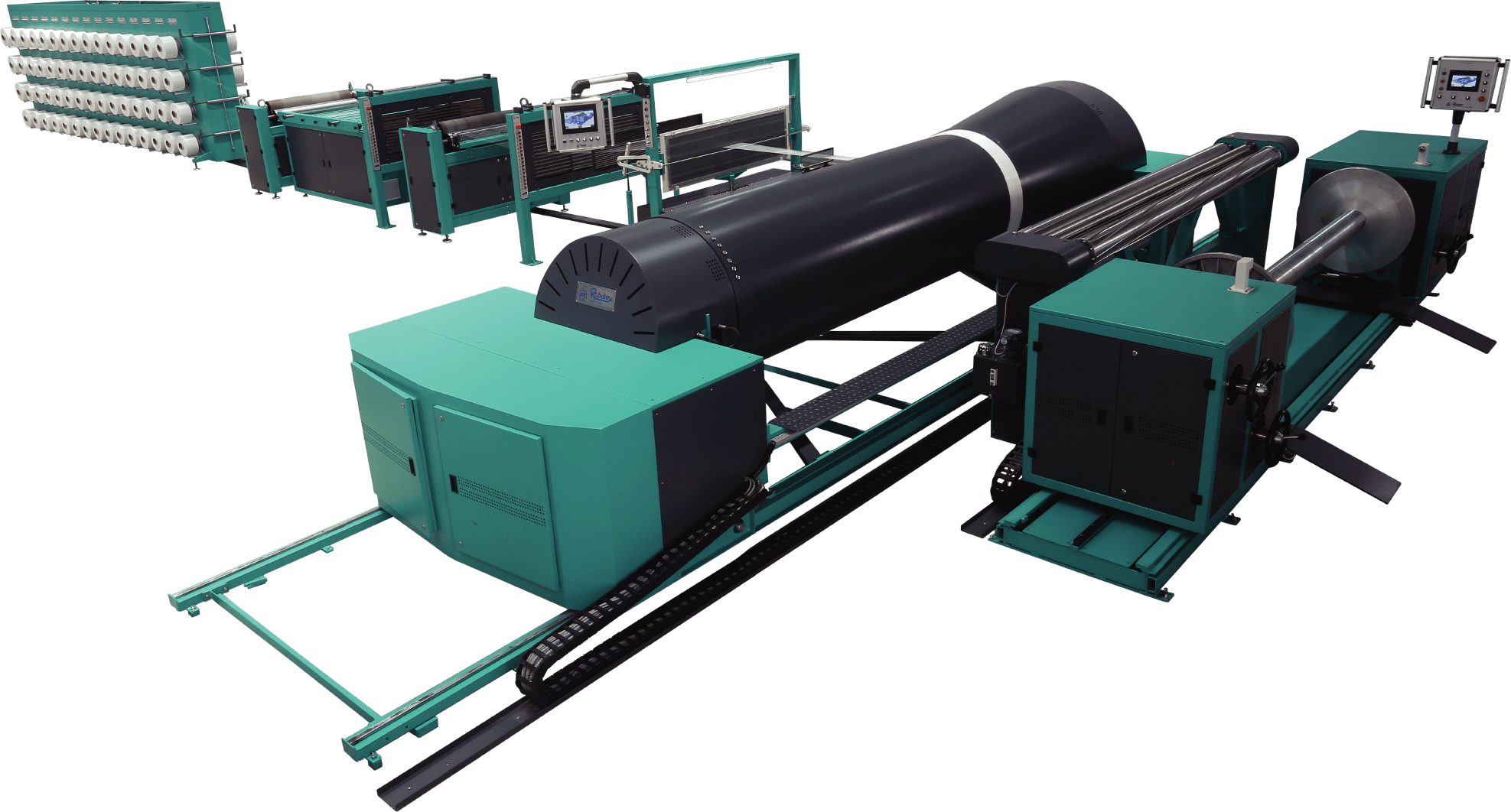

First Indian Manufacturer to achieve maximum efficiency with best quality by handling Fine monofilament material with groundbreaking integration of automation. Rabatex proudly has highest market share in India for this product segment.
Technical Features
Useful working width
: 1900 mm to 4400 mm
Beam flange dia
: 1000-mm
Cone length
: 1300 mm
Drum circumference
: 3140 mm
Section width
: 400 mm (Higher on request)
Maximum warping speed
: 400 MPM (Mechanical speed 700 MPM)
Maximum beaming speed
: 150 MPM
Features Highlights
Reed table traverse through AC servo drive on precise ball screw
Closest yarn delivery to drum for avoiding misalignment of section width and cross ends
Easily accessible warping desk board
Energy efficient powerful disc brakes with accumulator
Fully PLC controlled
Inbuilt printer for process data sheet
Separate HMI at warping as well as beaming
3 roll waxing device with SS wax tray, circulation storage tank with pump & motor synchronized waxing speed
The Center SS roll is driven by a gear box and an AC motor with variable speed
AC drive for SS guide roll
Heavy duty separate beaming unit
Beam arm movable on rail pipe support
Constant beaming line speed control
Direct beam drive
Individual hydraulic donning/doffing device
Safety device (Photo cell).
Foot pedal for hands free start / stop operation
Reverse direction locking
Twin creel option (With extended rail, extra leasing stand & control panel)
