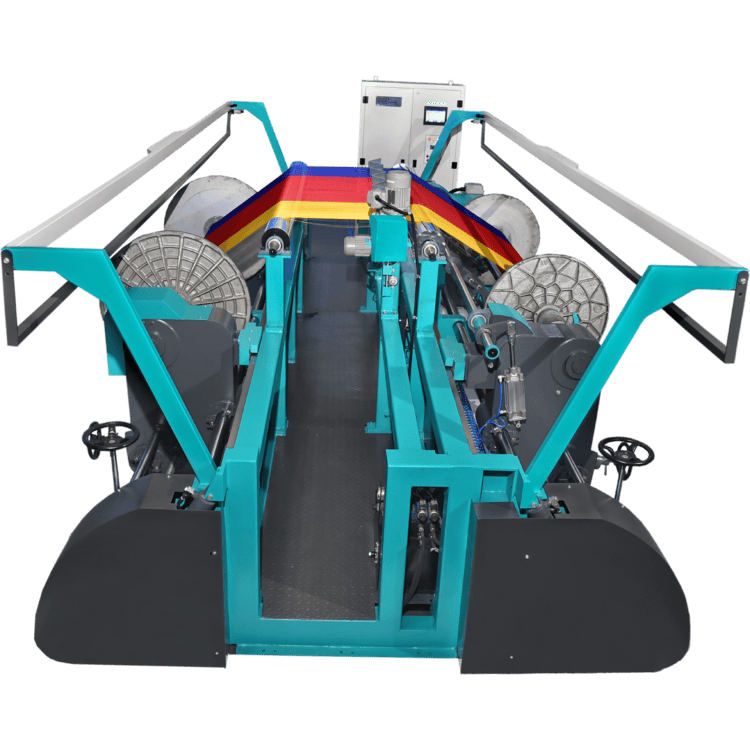

BEAM TO BEAM REWINDING MACHINE MODEL RI 1001
Previous
Next
Feature:
- Heavy duty fixed beaming structure on both side.
- Precise length accuracy.
- Advance PLC Controlled with inbuilt Analog Module.
- Powerful disc brake.
- AC drive for beaming motor.
- UPS back up for data restore.
- Direct Beaming drive through heavy duty gear box.
- Adjustable beam arm on both side.
- 10″ Touch Screen HMI for all process data.
Technical Specification:
- Working width : 1900 to 4400 mm.
- Beam Flange Dia : 800mm to 1000mm.
- Max. Speed : 100 mtrs/min.
- Warp Width Adjustment : Through Comb V reed.
- Donning Doffing : Hydraulic Operated.
- Take Up unit driven by : AC Motor through AC Drive.
- Let Off unit control : By pneumatic disc brake.
Warp Sheet Oscillation through Comb
Expansion Comb for Adjustment
Advance Beam Winder with Powerfull Transmission
Unwinder Braking Assembly
Optional Accessories
Waxing Device (Optional)
Flutter Roller (Optional)
